NZ Fire behaviour toolkit

Fire behaviour toolkit

This user-friendly software package incorporates the fuel and fire behaviour models developed by Scion's Rural Fire Research group

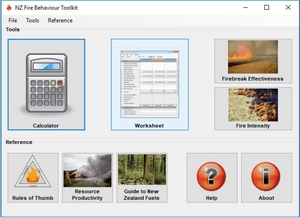

The Toolkit is comprised of a number of separate modules, each of which was developed for different purposes and levels of use, including the Fire Behaviour Calculator, Fire Behaviour Worksheet, Firebreak Effectiveness and Fire Intensity/Flame Length calculators, Fire Behaviour Rules of Thumb and Resource Productivity guides

This version incorporates an electronic version of the Guide to New Zealand Fuels. This is a technical guide for selecting the most appropriate fuel type for fire behaviour predictions. It provides users with a better understanding of how the fire behaviour models differ from one another, and will therefore aid in making the correct selection for fire behaviour predictions.

Toolkit requirements

The NZ Fire Behaviour Toolkit will run on any computer that supports Microsoft .NET Framework 2.0. The .NET Framework is a development and execution environment that can be used by many Windows-based applications. The .NET Framework comes pre-installed on Windows Vista and can be installed on Windows 2000 and Windows XP systems

If not already installed, .NET Framework 2.0 is available for download from the Microsoft website. NET Framework 2.0 Service Pack 1 (x86). The NZ Fire Behaviour Toolkit installer will check for .NET presence. The link above contains information on the system requirements to install .NET Framework 2.0 (or refer to the NZ Fire Behaviour Toolkit: User Guide and Technical Report for details.

For users with Windows Server 2000 SP4, install KB 835732 before installing .NET Framework 2.0 Service Pack 1.

To install and operate NZ Fire Behaviour Toolkit on Windows 98 operating systems, please contact the Scion rural fire research group for instructions.

In addition, to access some NZ Fire Behaviour Toolkit reference material, a PDF viewer is also required.

The latest software update (v is now available [254 Mb exe]

NZ Fire Behaviour Toolkit User Guide [862 Kb PDF]

A number of blank worksheets and worked examples of fireline weather, fire behaviour observation and prediction forms are ready for download.

These sheets were used in the recent Intermediate Fire Behaviour and Fire Behaviour Forecasting Courses. The forms below are also located in the appendices of the orange manual "A Manual for Predicting Fire Behaviour in New Zealand Fuels". This manual helps users predict fire behaviour in New Zealand fuel types and represents the current state of knowledge with respect to predicting fire behaviour in New Zealand.
